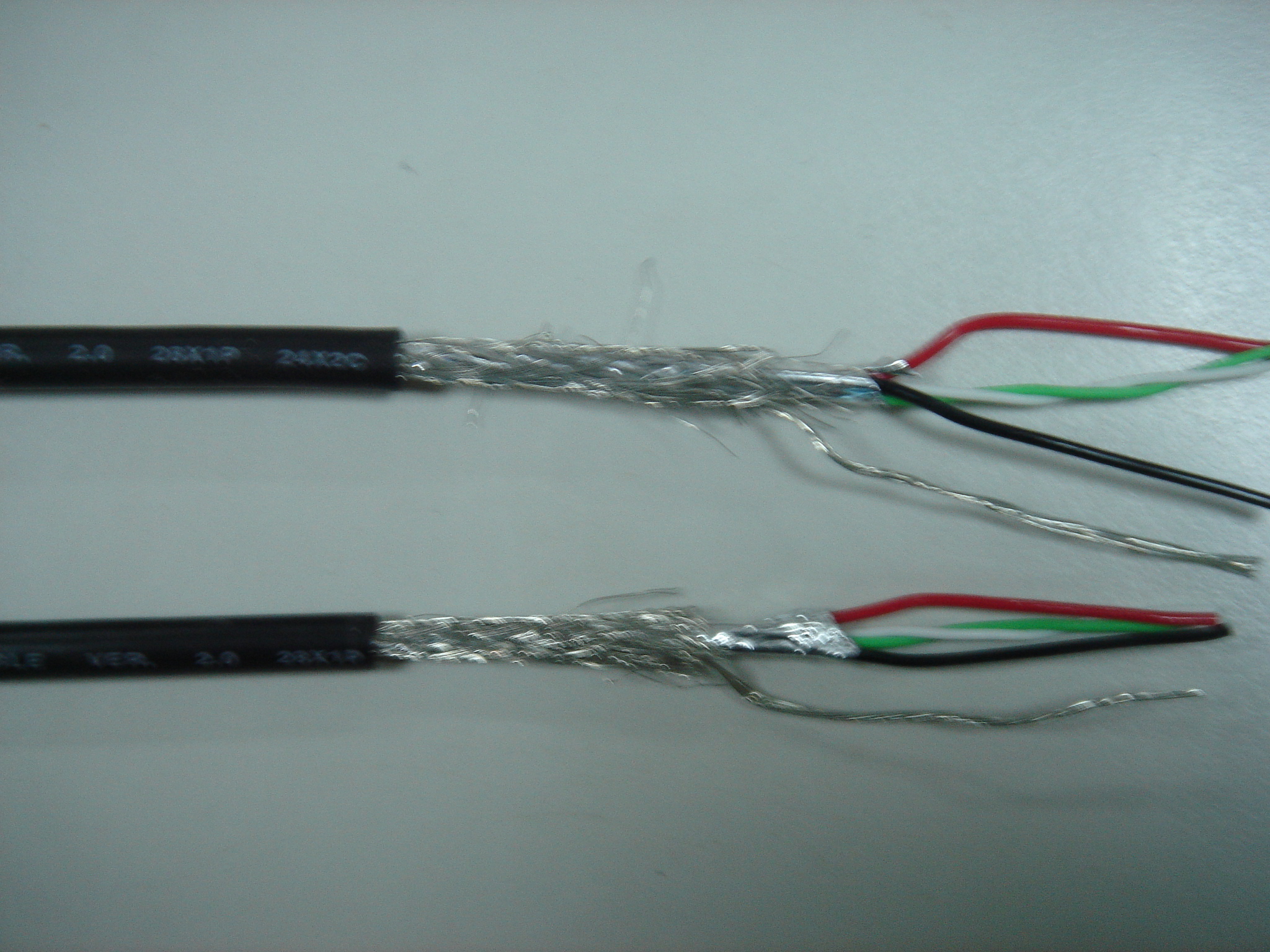

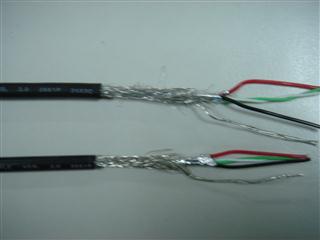

- 電纜整體結構示意圖：
- Insulation material : :
Inside insulation: FPE
Outside insulation: SR-PVC
- Shield :
★Aluminum foil/mylar
★Drain wire:24AWG soft stranded tinned copper
(If there are any other special requirements on specifications, please feel free to contact us for further information)
★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
- Jacket :
*material： PVC
*color：Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, minimum order quantity will be requested. Please feel free to contact us for further information).
*diameter: Please press the "download" button to see the Overall Diameter tables. We also can follow customer's requirements to adjust the cable O.D.
- Rated Temperature:
80℃
- Rated Voltage:
30 Volt
- Safety Approval Standard:
Passes UL VW-1 Vertical flame test、CL2 and CSA
- Application :
• Notebook and desktop computers
• Digital cameras
• PDA
• Portable music recorders/players
• Printers
• Scanners
＊All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
