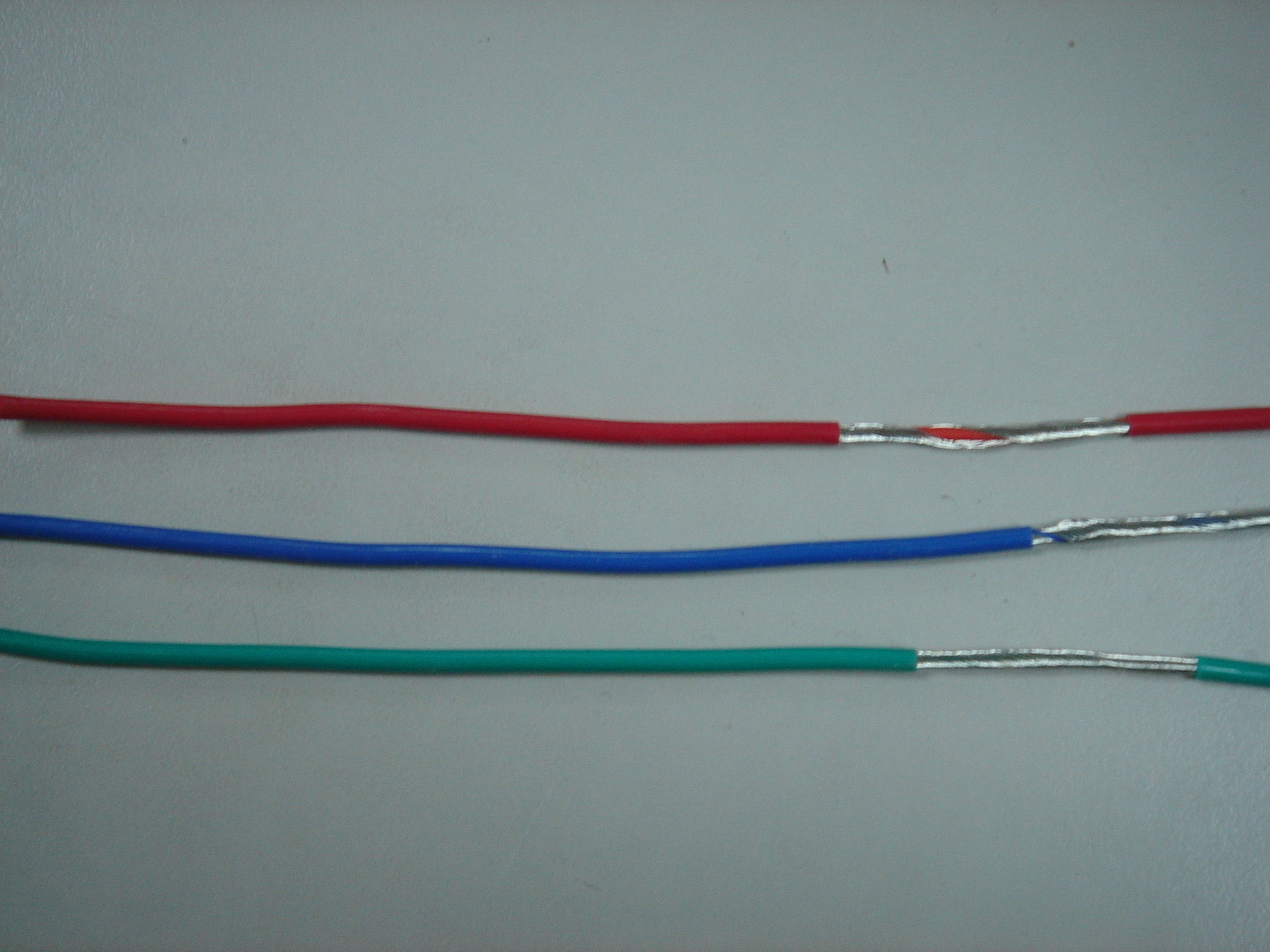

UL1354 Coaxial cable

  • Construction :

  • Conductor Specification :
    Stranded Tinned Copper
    UL TYPE AWG Copper Type Material/Diameter(mm)
    UL 1354 28AWG 0.127*7 FPE: 1.5
    SR-PVC: 2.5
  • Spiral Shield:
    soft stranded tinned copper: 0.12*41(approximate data, only for reference. )
  • Insulation material:
    Inside insulation: FPE
    Outside insulation: Semi-rigid PVC
  • Rated Temperature:
    80℃
  • Rated Voltage :
    30 Volt
  • Safety Approval Standard :
    Passes UL VW-1 Vertical flame test、CL2 and CSA
  • Application :
    Use VGA Monitor the apparatus 、or electronic equipment
＊All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
