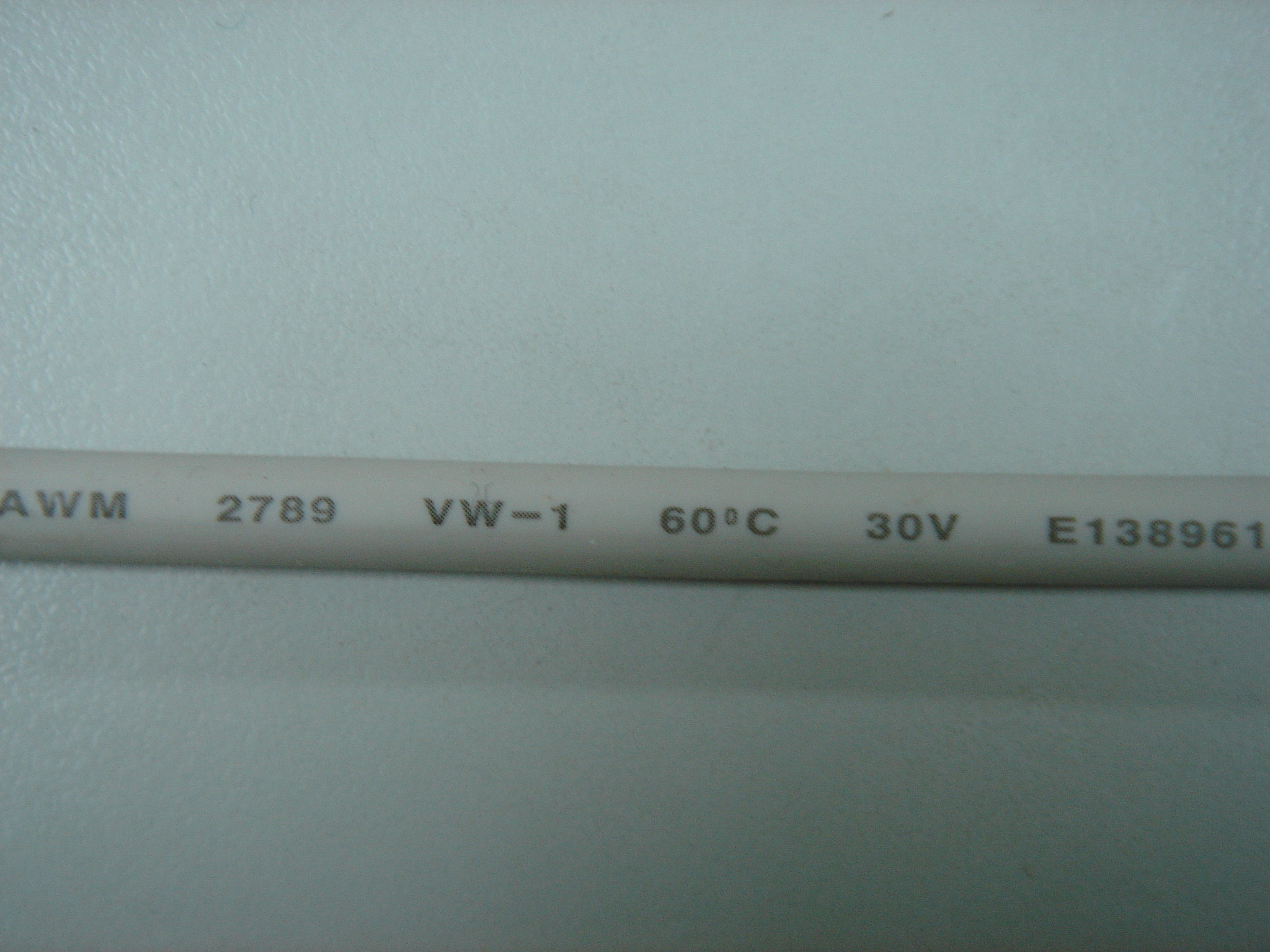

UL2789 Aluminum/mylar & braid shield cable

  • Construction :
  • Conductor Specification :
    Conductor Specification
    Stranded Tinned Copper
    AWG Copper Type Diameter(mm)
    28AWG 0.127 x 7 0.6
    30AWG 0.10 x 7 0.55
    Insulation material：FRPP(for 100Ω) or FPE(for 130Ω)
  • Shield :
    ★Aluminum foil/mylar
    ★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
    ★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
  • Jacket :
    material： PVC
    color：Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, mininum order quantity will be requested. Please feel free to contact us for further information).
  • core :
    2C ~ 50C
  • Rated Temperature:
    60℃
  • Rated Voltage :
    30 Volt
  • Safety Approval Standard :
    Passes UL VW-1 Vertical flame test、CL2 and CSA
  • Application :
    Internal wiring or external interconnection of electronic equipment
＊All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
