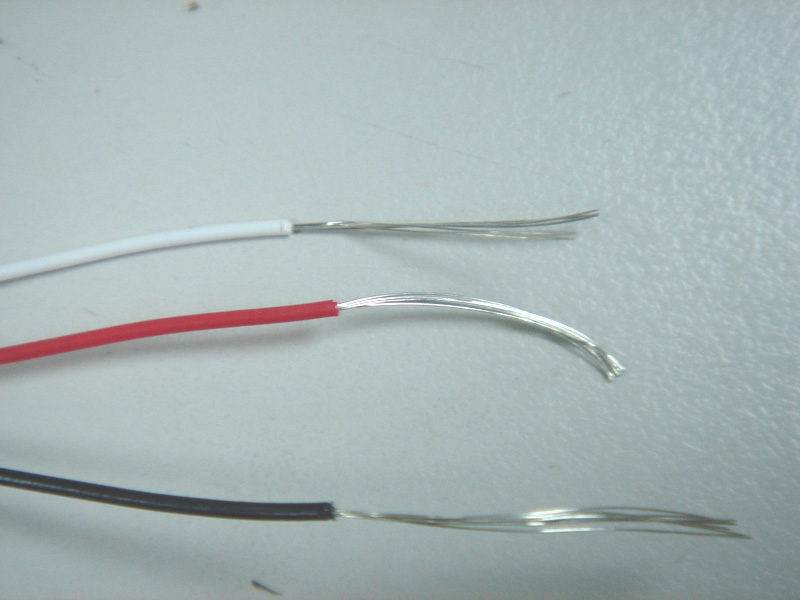

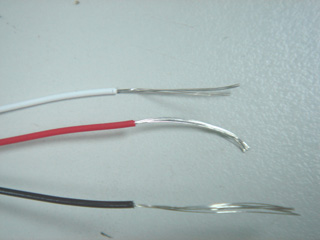

UL1061 HOOK UP WIRE

• Conductor Specification :


  Stranded Tinned Copper
  AWG		Copper Type		Diameter(mm)
  16AWG		0.254 x 26		2.3
  18AWG		0.18 x 34		1.8
  20AWG		0.18 x 21		1.5
  22AWG		0.16 x 17		1.3
  24AWG		0.2 x 7		1.1
  26AWG		0.16 x 7		1.0
  28AWG		0.127 x 7		0.85
  30AWG		0.1 x 7		0.7

• Insulation material :
  Semi-rigid Polyvinyl Chloride
• Rated Temperature:
  80℃
• Rated Voltage :
  300 Volt
• SAFETY APPROVAL STANDARD :
  Passes UL VW-1 Vertical flame test、CL2 and CSA
• Application:
  Internal Wiring in Electric Bookkeeping, Accounting, Time-Recording Machines, or Electronic Equipment if within a chassis or protected from mechanical injury.
