HomeOur ProductsUL2990 Paired Low Voltage Computer CableDouble Shielded(Aluminum/mylar and Braid Shield)

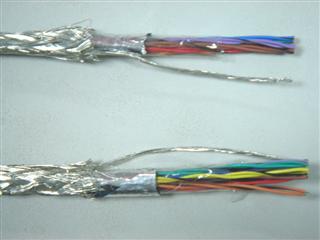

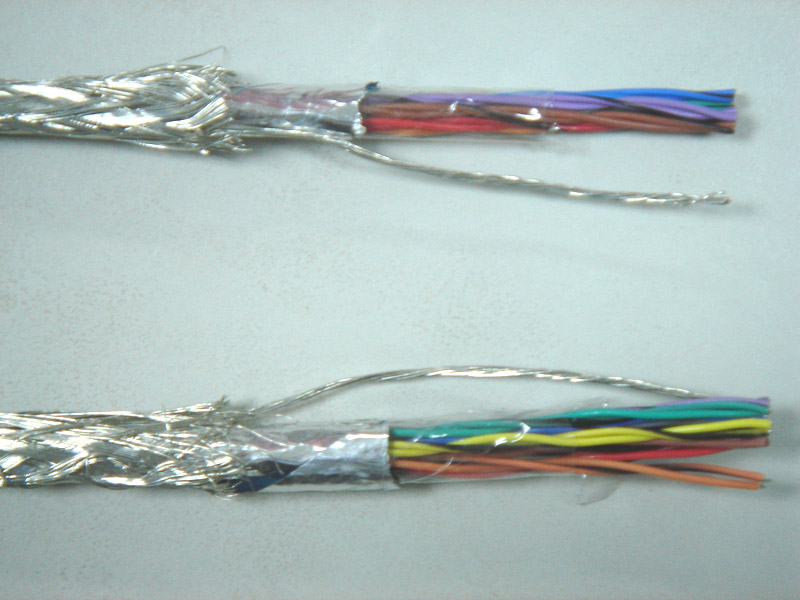

Double Shielded(Aluminum/mylar and Braid Shield)

★Aluminum foil/mylar
★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
後台圖片

Specification
  • Construction :
  • Conductor Specification :
    Conductor Specification
    Stranded Tinned Copper
    AWG Copper Type Diameter(mm)
    28AWG 0.127 x 7 0.6
    30AWG 0.10 x 7 0.55
    Insulation material:FRPP
  • Shield :
    ★Aluminum foil/mylar
    ★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
    ★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
  • Jacket :
    material: PVC
    color:Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, mininum order quantity will be requested. Please feel free to contact us for further information).
    Diameter:Please press the "download" button to see the Overall Diameter tables. We also can follow customer's requirements to adjust the cable O.D.
  • core :
    2P ~ 50P
  • Rated Temperature:
    80℃
  • Rated Voltage :
    30 Volt
  • Safety Approval Standard :
    Passes UL VW-1 Vertical flame test、CL2 and CSA
  • Application :
    Internal wiring or external interconnection of electronic equipment
*All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
  • Overall Diameter
    Double shielded cable/core
    ●If it's not our standard specifications and which we don't have any stock , then minimum order quantity:1000 meters will be required.
    UL Type AWG PAIR Diameter(mm) Stock
    UL2990 28 2 4.0
    3 5.0
    4 5.0
    5 5.0
    7 5.5
    8 6.0
    9 6.0
    10 6.0
    13 6.5
    15 7.0
    17 7.5
    18 7.5
    19 8.0
    25 8.0
    34 10.0
    50 10.6
    *All the above are our popular/standard specifications, if any other special requirements, please feel free to contact us for further information.
