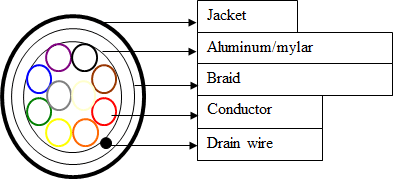

- Construction :
- Conductor Specification :
Conductor Specification
| Stranded Tinned Copper |
| AWG |
Copper Type |
Diameter(mm) |
| 16AWG |
0.254 x 26 |
2.3 |
| 18AWG |
0.18 x 34 |
1.8 |
| 20AWG |
0.18 x 21 |
1.5 |
| 22AWG |
0.16 x 17 |
1.3 |
| 24AWG |
0.2 x 7 |
1.1 |
| 26AWG |
0.16 x 7 |
1.0 |
| 28AWG |
0.127 x 7 |
0.85 |
| 30AWG |
0.1 x 7 |
0.7 |
Insulation material：Semi-rigid Polyvinyl Chloride

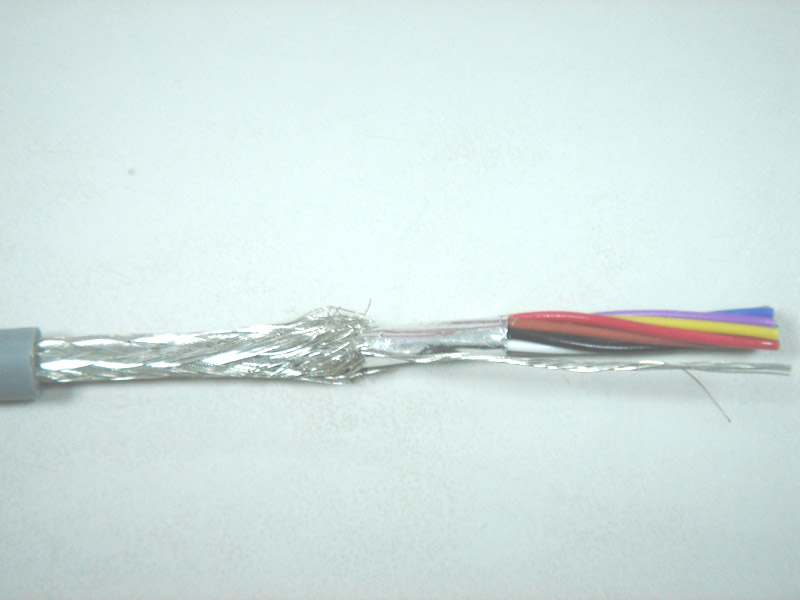

- Shield :
★Aluminum foil/mylar
★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
- Jacket :
material： PVC
color：Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, mininum order quantity will be requested. Please feel free to contact us for further information).
Diameter：Please press the "download" button to see the Overall Diameter tables. We also can follow customer's requirements to adjust the cable O.D.
- core :
2C ~ 62C
- Rated Temperature:
80℃
- Rated Voltage :
300 Volt
- Safety Approval Standard :
Passes UL VW-1 Vertical flame test、CL2 and CSA
- Application :
Internal wiring or external interconnection of electronic equipment (such as desk-type calculators, dictating machines, or x-ray equipment).
＊All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
