HomeOur ProductsUL2919 Low voltage R.G.B CABLEDouble Shielded(Aluminum/mylar and Braid Shield)

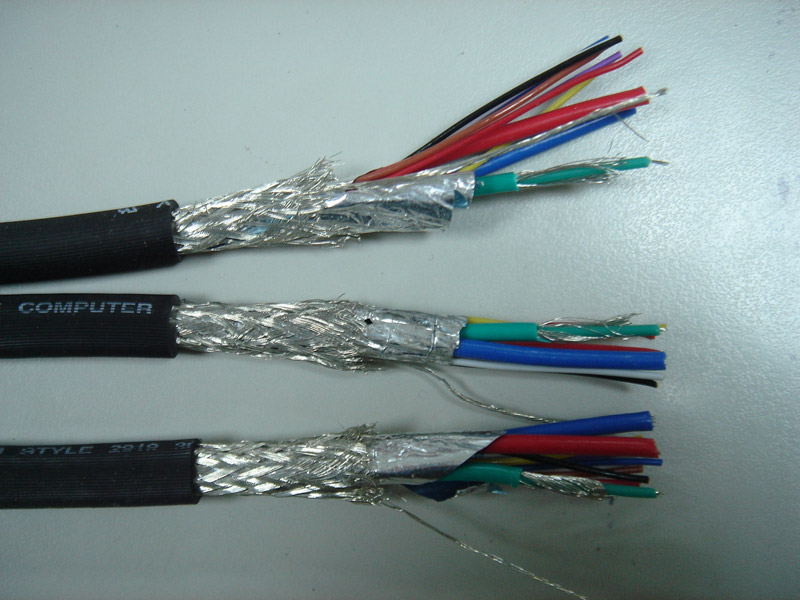

Double Shielded(Aluminum/mylar and Braid Shield)

★Aluminum foil/mylar
★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
後台圖片

Specification

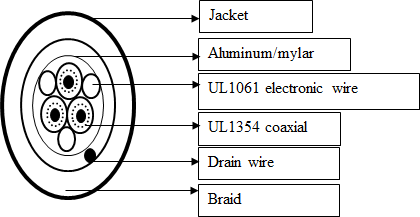

  • Construction :
  • Conductor Specification :
    Stranded Tinned Copper
    UL TYPE AWG Copper Type Material/Diameter(mm)
    UL1354 28AWG 0.127*7 FPE: 1.5
    SR-PVC: 2.5
    UL1061 26AWG 0.16*7 SR-PVC: 0.95
  • Shield :
    ★Aluminum foil/mylar
    ★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
    ★Braid of copper: tinned copper wire overall more than 85% coverage braided shield.
  • Jacket :
    material: PVC
    color:Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, mininum order quantity will be requested. Please feel free to contact us for further information).
    Diameter:Please press the "download" button to see the Overall Diameter tables. We also can follow customer's requirements to adjust the cable O.D.
  • core :
    R.G.B is made up with three coaxial cable and electronic wire,(R): red (G): green (B): blue
    3 coaxial+3C(electronic wire)~3 coaxial+9C(electronic wire)
  • Rated Temperature:
    80℃
  • Rated Voltage :
    30 Volt
  • Safety Approval Standard :
    Passes UL VW-1 Vertical flame test、CL2 and CSA
  • Application :
    Use VGA Monitor the apparatus 、or electronic equipment
*All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
  • Overall Diameter
    Double shielded cable
    ●If it's not our standard specifications and which we don't have any stock , then minimum order quantity:1000 meters will be required.
    UL Type
    2919
    conductor CORE UL Type Diameter(mm) Stock
    AWG NO./mm
    3+3 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 3 UL 1061
    3+4 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 4 UL 1061
    3+5 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 5 UL 1061
    3+6 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 6 UL 1061
    3+7 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 7 UL 1061
    3+8 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 8 UL 1061
    3+9 28 0.127*7 3 UL 1354 8.5
    26 0.16*7 9 UL 1061
    5+5 28 0.127*7 5 UL 1354 9.0
    26 0.16*7 5 UL 1061
  • *All the above are our popular/standard specifications, if any other special requirements, please feel free to contact us for further information.
