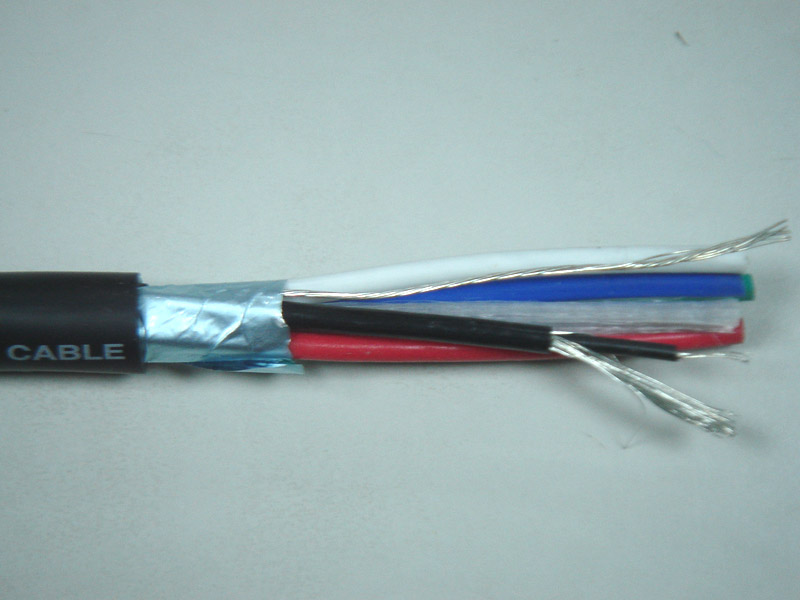

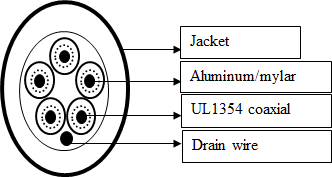

- Construction :
- Conductor Specification :
| Stranded Tinned Copper |
| UL TYPE |
AWG |
Copper Type |
Material/Diameter(mm) |
| UL 1354 |
28AWG |
0.127*7 |
FPE: 1.5 |
| SR-PVC: 2.5 |
- Spiral Shield:
soft stranded tinned copper: 0.12*41(approximate data, only for reference. )
- Insulation material:
Inside insulation: FPE
Outside insulation: Semi-rigid PVC
- Shield :
★Aluminum foil/mylar
★Drain wire: 24AWG soft stranded tinned copper. (If there are any other special requirements on specifications, please feel free to contact us for further information)
- Jacket :
material： PVC
color：Our standard cable colors for cables are black, grey, and beige. (Besides of these 3 colors, we are also able to offer customized cable colors,but, mininum order quantity will be requested. Please feel free to contact us for further information).
Diameter：Please press the "download" button to see the Overall Diameter tables. We also can follow customer's requirements to adjust the cable O.D.
- core :
2C ~5C
- Rated Temperature:
80℃
- Rated Voltage :
30 Volt
- Safety Approval Standard :
Passes UL VW-1 Vertical flame test、CL2 and CSA
- Application :
Use VGA Monitor the apparatus 、or electronic equipment
＊All the products manufactured by Chuan Wei are in compliance with RoHS Directive 2002/95/EC.
